May Parasols 13’ 1″ x 16’ 5″ SCHATTELLO Rectangular Umbrella is the ultimate center pole parasol designed for the hospitality industry. Whether for outdoor dining areas, street cafés, restaurants, hotels, trade fairs, or events, its canopy offers large-scale sun protection and style. For reliability, this giant market outdoor umbrella has undergone wind tunnel testing, proving its high-level stability and performance even against winds up to 40 mp/h.

The surface of the frame is available in four different powder-coated colors. You can also choose from over 25 contemporary textile designs, available in two different fabric types: MayTex-Acryl and MayTex-PVC, depending on your durability and UV requirements. Other custom colors are available upon request. The Schattello Rectangular Umbrella also offers different types of mounting options and bases, so you can seamlessly integrate them into the aesthetic of your outdoor landscape.

Key Features

Excellent UV protection of UPF40 to UPF80 so your customers stay protected against harmful UV rays
Optimal use of your outdoor area, keep customers outside for longer
All-weather protection function is ideal for commercial settings
High-quality, extruded aluminum alloy frame for superior quality & longevity
Telescopic pole accommodates different seating configurations
High level of wind safety, verified in accordance with the standards DIN 1055:2005 & EN 1991-1-1:2011-2014
Polyester powder coating for hard-wearing corrosion protection
Quick & easy to replace canopy to simplify maintenance & customization
Extremely durable for long-lasting performance in commercial settings
Have a custom logo printed on your canopy (additional surcharge)
Made in Europe; delivered ready to set up

What's Included

Ready-to-Use String Parasol
Protective Cover Sleeve
Stainless Steel Crank
Lashing Strap
Instructional Manuals
A choice of the following mounting options:

Stationary Installation Options

Anchor Tube to be Embedded in Concrete
Dowel-Anchor Plate
Wall Bracket

Mobile Installation Options

Full Frame Pedestal
Full Frame Pedestal with (4x) Gabion Baskets & (4x) Seat Plates
Full Frame Pedestal Adjustable for Slanting Surfaces
Full Frame Pedestal on Wheels

Customizable Mounting Options Available

Please contact us if there is something you wish to request

Mounting Options and Bases Explained

Anchor Tube to Be Embedded in Concrete - SZ118 (+$166.00)		2 pieces, screw-off upper part, for 6- and 8-segment parasols, incl. top plate for winter protection. Hot-dip galvanized a = 8.66", b = 11.42", s = Ø 3.94", y = 4.53", Weight = 7kg
Dowel-Anchor Plate - SZ261 (+$283.00)		2 pieces, screw-off upper part, for 6- and 8-segment parasols. Hot-dip galvanized a = 8.66", x = 11.81", t = 0.59", z = Ø 0.71", Weight = 14 kg
Wall Bracket - RZ125 (+$178.00)		Bottom of support pole rests on bottom end of anchor tube. When ordering, please state installation height, i.e. distance from ground surface to bottom end of support mast. Otherwise it may become necessary to shorten the mast. Hot-dip galvanized Wall Plate = 11.81" x 7.87", x = 2.83", y = 1.97", t = 0.39", Weight = 7 kg
Full Frame Pedestal with Screw-on Tube - SZ411 (+$500.00)		for 6- and 8-segment parasols. For 1 set of standard concrete slabs 50 x 50 x 5 cm. Hot-dip galvanized Frame size = 3' 4.55" x 3' 7.70", Total height = 11.42", x = height of frame 1.97", Weight = 30 kg

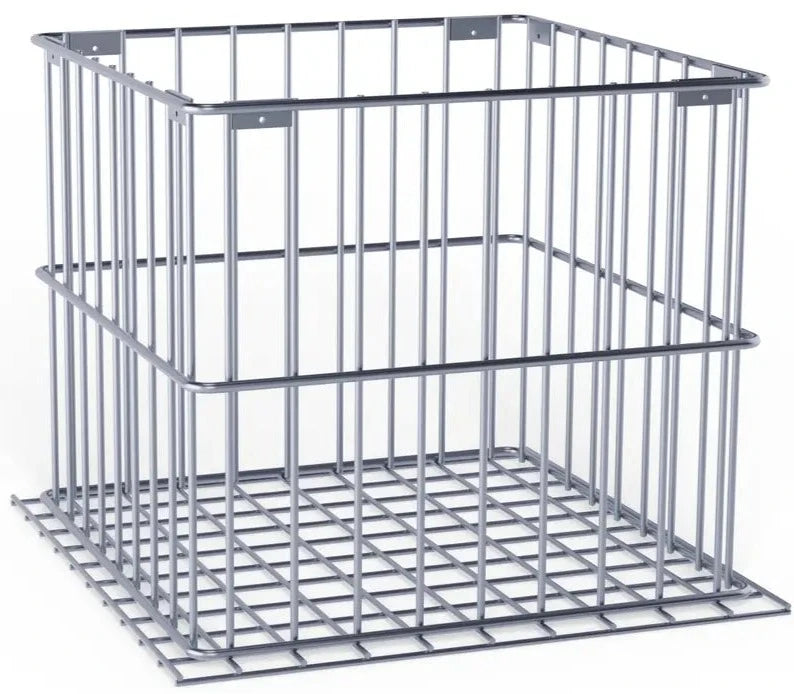

(4x) Gabion Baskets - 357885 (+$880.00)		Suitable for SZ411, SZ412, SZ420, SZ201 and SZ203. For retrofit. Hot-dip galvanized Base & Height = 1' 7.69" x 1' 7.69", Weight = 7.2 kg
(4x) Seat Plates - 375890 (+$600.00)		HPL grey decor, including 4 stainless steel screws. Base = 1' 7.69" x 1' 7.69" Note: Required if using Gabion Baskets
Full Frame Pedestal Adjustable for Slanting Surfaces - SZ412 (+$579.00)		With 4 rubber diagonal support levelling screws. For 1 set of standard concrete slabs 50 x 50 x 5 cm. Hot-dip galvanized Frame size = 3' 4.55" x 3' 7.70", Total height min. = 1' 0.60", max. 36 cm, x = height of frame 1.97", = Weight = 30 kg
Full Frame Pedestal on Wheels - SZ414 (+$649.00)		With rubber heavy-duty rollers and fixing brakes. For 1 set of standard concrete slabs 50 x 50 x 5 cm. Attention: wind sensitive! Hot-dip galvanized Frame size = 3' 4.55" x 3' 7.70", Total height = 1' 2.17" 1.97", x = height of frame 1.97", Weight = 31 kg

Materials and Colors Explained

	MayTex-Acryl	MayTex-PVC
Grammage	300 g/m²	480 g/m²
UV Protection (UV801)	40 to 80	80
Waterproof Fabrics	370 mm Water Repellent	> 1.000 mm Waterproof
Fabric Color Options	Vanilla, Ecru, White Grey Knopped,, White Yellow Grey Knopped, Sapphire, Patina Blue, Navy Blue, Apple Green, Dark Green, Patina Green, Beige, Silver Grey Dark Brown Knopped, Light Grey, Stone Grey Mottled, Grey White, Telegrey White, Taupe, Basalt Grey, Atlas Grey, and Black Beige	Ecru Matt, Ivory Matt, Beige Matt, Grey Matt, and Slate Grey Matt
Cleaning	Yes	Yes
Special Features	Very hardwearing fabric, a popular and classic means of sun protection, and a top price/performance ratio	Flame-resistant (B1) (without print), mechanical, robust

Specifications

	Shape	Rectangular
	Dimensions	13' 1" x 16' 5"
	Segments	8 panels
	Area	215 ft²
A	Height when closed incl. top plate	13' 9"
B	Height when opened incl. top plate	10' 3"
C	Headroom with valance	6' 11"
D	Headroom without valance from spoke edge	7' 9"
F	Ground clearance from spoke edge	2' 9"
E	Valance height	11"
G	Height of lower distribution flange	6' 6"
H	Crank height	3'
	Diameter of parasol pole	Ø 2.99"
	Pole thickness	0.12"
	Weight without packaging MayTex-Acryl without valance	43 kg
	Length of packaging cardboard sleeve Ø 33 cm	14' 7"
	Weight of packaging	17 kg
	Foundation length / width / minimum depth	1' 8" / 1' 8" / 1' 12"
	Minimum ballast number of concrete slab layers XZ49	1 x ~ 112 kg
